Introduction: The Modern Home’s Safety Net—GFCI and AFCI Explained
Electrical safety in the home has evolved dramatically over the past few decades, driven by advances in technology, updated building codes, and a deeper understanding of household hazards. Two abbreviations have become cornerstones of this evolution: GFCI (Ground Fault Circuit Interrupter) and AFCI (Arc Fault Circuit Interrupter). Both play critical roles in protecting your family and property from electrical shocks and fires, yet their differences and applications often cause confusion for homeowners and even DIY enthusiasts. Do you know which rooms require which type? Or why certain outlets need GFCI while others demand AFCI protection? Installing the wrong device—or omitting protection altogether—not only leaves you vulnerable but can also put you in violation of local codes and insurance requirements.
This in-depth guide demystifies GFCI and AFCI protection. We’ll break down exactly what these devices do, where modern codes require them, how to identify existing protection in your home, and step-by-step installation advice with practical troubleshooting tips. Whether you’re renovating, adding circuits, or simply want to upgrade your home’s safety, this guide provides actionable, expert-level advice for homeowners at any stage of their electrical journey. Let’s eliminate guesswork and make your home smarter, safer, and fully compliant.
GFCI vs. AFCI: What’s the Difference?
How GFCIs Work—and What They Protect Against
GFCI devices are designed to protect people from electric shock. They constantly monitor the flow of electricity in a circuit and, if they detect a current imbalance as small as 4-6 milliamps (which could indicate current leaking through a person to ground), they trip in a fraction of a second—far quicker than a standard circuit breaker. This makes GFCIs vital wherever water and electricity may come into contact, as the risk of shock is highest in these scenarios.
- Common GFCI Locations: Bathrooms, kitchens, garages, unfinished basements, crawl spaces, laundry areas, outdoor outlets, and within 6 feet of any sink.
- Types of GFCI Devices: GFCI outlets (receptacles), GFCI circuit breakers, and portable GFCIs.
How AFCIs Work—and Their Fire Prevention Role
AFCI devices are designed to prevent electrical fires. They detect dangerous arcing faults—unseen electrical discharges that can ignite nearby combustibles—often caused by damaged wires, loose connections, or aging insulation. Unlike GFCIs, AFCIs do not protect against shock but instead cut power before arcs can start a fire.
- Common AFCI Locations: Bedrooms, living rooms, dining rooms, hallways, and most general living areas as required by modern codes.
- Types of AFCI Devices: AFCI circuit breakers (most common), combination GFCI/AFCI outlets for specific applications.
Where Does Each Type Belong? Navigating the NEC and Local Codes
Key Code Requirements: The 2023 NEC at a Glance
The National Electrical Code (NEC) is updated every three years, and requirements for GFCI and AFCI protection have become increasingly broad. Most states and municipalities adopt the NEC, but always check with your local authority for amendments or additional rules.
- GFCI Required Areas (2023 NEC):
- Bathrooms
- Kitchens (all countertop outlets and those within 6 feet of a sink)
- Garages and accessory buildings with power
- Unfinished basements and crawl spaces
- Outdoor outlets (including receptacles for AC units)
- Laundry areas
- Boathouses and pools/spas
- AFCI Required Areas (2023 NEC):
- All 120-volt, single-phase, 15- and 20-amp branch circuits supplying outlets or devices in: bedrooms, family rooms, dining rooms, living rooms, parlors, libraries, dens, sunrooms, recreation rooms, closets, hallways, and similar rooms.
- Dual Protection (GFCI + AFCI): Many modern kitchens, laundry rooms, and finished basements now require both protections—either by using a dual-function breaker or a combination of devices.
Understanding Local Code Variations
Some jurisdictions may delay adoption of the latest NEC or add/omit requirements. Always check with your local building department before starting any electrical upgrade. For example, older homes may be “grandfathered” under earlier codes but must be brought up to current standards during remodels or when adding new circuits.
How to Identify Existing Protection in Your Home
Visual Clues and Testing Methods
Knowing what protection is already in place is crucial before making changes. Here’s how to check:
- GFCI Outlets: Look for “Test” and “Reset” buttons, usually colored. Press “Test”—the outlet should stop supplying power until you hit “Reset.” If not, replace it.

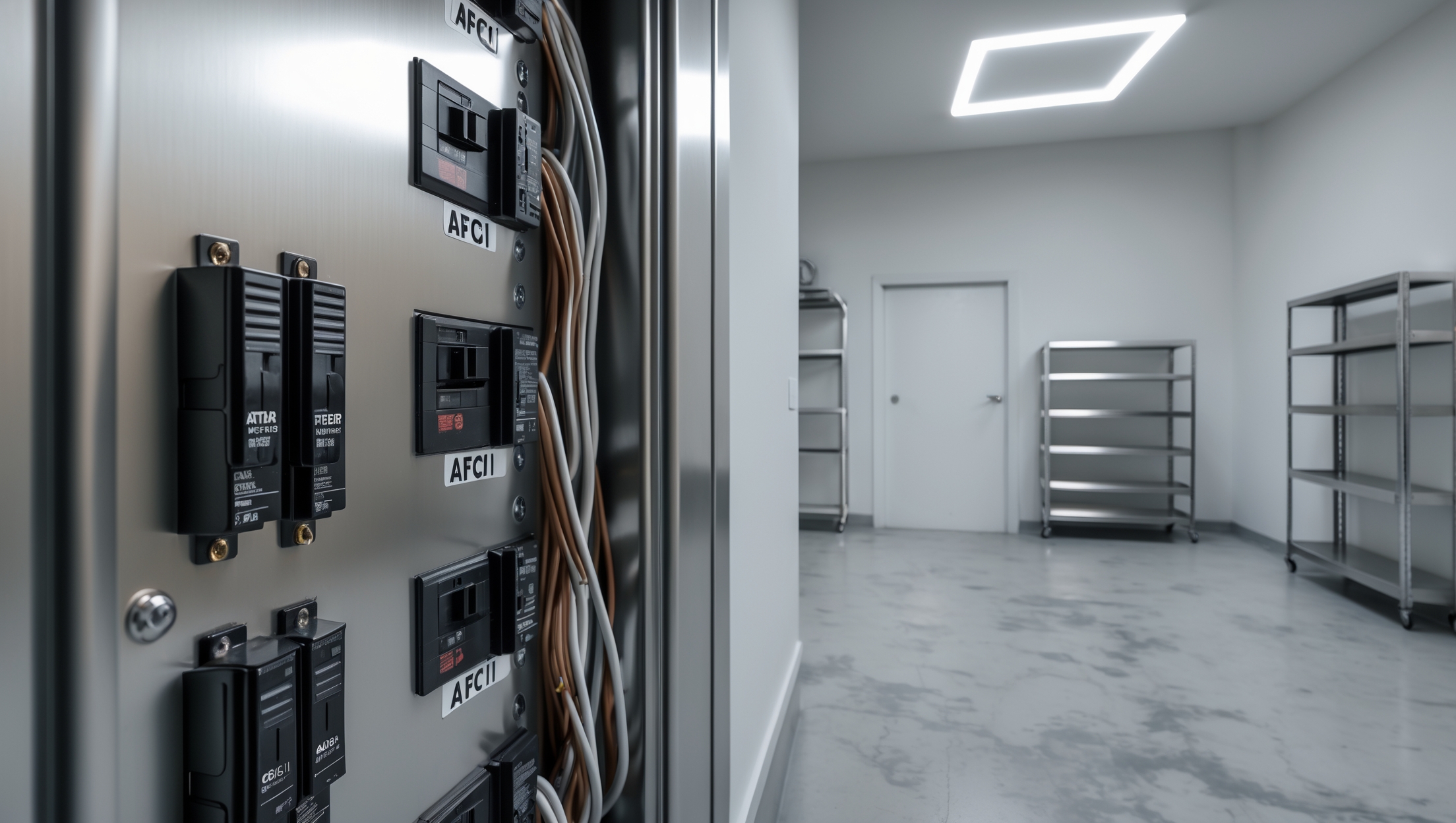

- AFCI Breakers: Found in the main panel, typically labeled “AFCI” or “Arc Fault” and often have a “Test” button. Press to verify proper function.
- Combination Devices: Some breakers and outlets provide both AFCI and GFCI protection; check the labeling and test both functions.
- Testers: Use a plug-in GFCI/AFCI tester for a quick and reliable check, available at most hardware stores.
When to Upgrade or Replace
- If outlets or breakers fail their self-test, trip unexpectedly, or feel hot, replace them immediately.
- Upgrade to dual-function devices in areas now requiring both protections.
- During any remodel or addition, ensure new circuits meet current code for both GFCI and AFCI as applicable.
Step-by-Step: Installing GFCI and AFCI Devices
Safety First: Preparation and Tools
Before any electrical work, turn off the circuit at the main panel and confirm with a voltage tester. Gather these tools:
- Insulated screwdriver set
- Wire stripper/cutter
- Voltage tester or multimeter
- Needle-nose pliers
- GFCI or AFCI device (breaker or outlet)
- Flashlight (for panel work)
- Label maker or tape/marker for identifying circuits
How to Install a GFCI Outlet
- Turn off the correct circuit breaker and verify power is off at the outlet.
- Remove the old outlet and note wire placements. Mark “line” (incoming power) and “load” (downstream) wires.
- Connect black (hot) and white (neutral) wires to the corresponding “line” terminals on the GFCI. Attach ground.
- If protecting additional outlets downstream, connect those wires to the “load” terminals.
- Secure the outlet in the box, replace the cover plate, and turn power back on.
- Test both the outlet and any protected downstream outlets using the “Test” and “Reset” buttons.
How to Install an AFCI Breaker
- Turn off the main breaker for safety.
- Remove the panel cover to access breakers (exercise extreme caution).
- Disconnect the old breaker (if upgrading) and note wire positions.
- Connect the circuit hot (black) wire to the AFCI breaker’s load terminal, and the neutral (white) to the AFCI’s pigtail, which also connects to the panel’s neutral bar.
- Snap the breaker into place, double-check connections, and replace the panel cover.
- Label the breaker, turn power back on, and test the AFCI function using the test button and a compatible tester.
Troubleshooting Common Issues
- Nuisance Tripping: Can be caused by shared neutrals, old wiring, or defective appliances. Isolate by disconnecting loads and testing individually.
- Improper Wiring: Double-check line vs. load terminals; reversed connections will disable protection.
- Breaker Won’t Reset: Usually indicates a genuine fault or wiring error. Inspect devices and connections carefully.
Special Cases: Kitchens, Laundry, and Dual-Function Devices
Modern Kitchens and Laundry Areas: Dual Protection
Recent code changes require both GFCI and AFCI protection in many kitchen and laundry circuits. For example, all 120V, 15- and 20-amp receptacles serving countertop surfaces in kitchens must be GFCI-protected, and now also AFCI-protected. The most straightforward solution is a dual-function breaker, which provides both protections at the panel, or a GFCI outlet on an AFCI branch circuit.
Combination Devices: When and Where to Use
- Dual-Function Breakers: Ideal for kitchens, laundry rooms, finished basements, and anywhere both protections are required.
- Combination Outlets: Useful if panel upgrades are impractical. Install at the first outlet on a branch circuit to protect downstream receptacles.
Cost Considerations: Budgeting and Product Selection
What to Expect: Device and Labor Costs
- GFCI Outlets: $15–$30 each for high-quality models.
- AFCI Breakers: $35–$60 each, with dual-function models costing $45–$70.
- Labor (if hiring an electrician): $75–$150 per device, depending on complexity and local rates.
- DIY Savings: Installing outlets is typically DIY-friendly; breaker installation is best left to those comfortable and experienced with panel work.
Choosing the Right Products
- Buy UL-listed devices from reputable brands (Leviton, Eaton, Square D, Siemens, etc.).
- Consider tamper-resistant and weather-resistant models for extra safety and code compliance.
- For smart homes, select compatible GFCI or AFCI models that integrate with home monitoring systems.
Maintenance Best Practices and Routine Testing
Why Regular Testing Matters
GFCI and AFCI devices can fail silently, so regular testing is vital for ongoing protection. Most manufacturers recommend monthly tests:
- Press the “Test” button on each outlet or breaker—power should cut off. Press “Reset” to restore.
- If a device fails to trip or reset, replace it immediately.
- Keep a log of test dates for insurance and code compliance records.
Signs of Trouble and When to Call a Pro
- Repeated or unexplained tripping—could signal hidden wiring damage or appliance faults.
- Devices that feel warm, hum, spark, or are physically damaged—replace immediately.
- Unfamiliar wiring configurations or panels—consult a licensed electrician for safety and compliance.
Conclusion: Building a Safer, Smarter Home—One Outlet at a Time
The distinction between GFCI and AFCI protection is more than just a technical detail—it’s a fundamental aspect of modern home safety and code compliance. Understanding where, why, and how to install these devices empowers homeowners to make informed decisions that protect both people and property. The risks of ignoring these requirements are real: electrical shock, devastating house fires, and potential legal or insurance complications. Yet, with a solid grasp of the basics and careful attention to code, you can dramatically reduce these hazards.
Whether you’re upgrading an older home, building new, or simply making routine improvements, integrating the right protection at the right locations is one of the wisest investments you can make. Today’s GFCI and AFCI devices are more reliable, affordable, and user-friendly than ever before. By testing regularly, staying current with code requirements, and calling in professionals for complex work, you ensure your home is not just up to code, but truly safe for all who live there.
Remember: electrical safety is not a one-time project but an ongoing commitment. Each outlet and breaker you upgrade adds another layer of protection, helping your family rest easy—and ensuring your investment is secure for years to come.
When updating an older home, is it possible to add GFCI or AFCI protection at the main panel instead of replacing individual outlets or breakers? If so, would that meet current code, or are there situations where individual devices are still required?
You can add GFCI or AFCI protection at the main panel by using combination breakers for circuits that require it, which is often acceptable and meets code, as protection covers the entire circuit downstream. However, some codes may specifically require protection at the first outlet or in locations where line and load wiring separation is needed. Always check with your local electrical code or inspector to be sure, since requirements can vary.
If I’m planning to update an older home that currently doesn’t seem to have either GFCI or AFCI protection, is there a recommended order for installing them? Should I prioritize outlets in bathrooms and kitchens with GFCI first, or start with AFCI breakers for the whole house?
It’s generally best to start by adding GFCI protection to outlets in bathrooms, kitchens, garages, and any other areas near water—these are higher-risk locations for electrical shock. Once GFCIs are in place, you can then consider upgrading the main circuits with AFCI breakers for broader fire protection throughout the home. This staged approach addresses immediate safety risks first.
If I’m renovating an older home that doesn’t have any GFCI or AFCI outlets, do I need to upgrade all outlets to meet modern code, or just in certain rooms like kitchens and bathrooms? How do inspectors usually enforce this when it comes to older wiring?
You generally only need to upgrade to GFCI or AFCI protection in specific areas required by current code—like kitchens, bathrooms, laundry rooms, and certain living spaces—rather than every outlet in the house. Inspectors typically focus on these designated areas during renovations, especially if you’re pulling permits or updating wiring. If you’re not touching some existing wiring, you might not be required to upgrade those circuits, but always check your local code for exact requirements.
You mentioned GFCIs are vital anywhere water could be involved, but does that mean I should put them on every outlet in my kitchen, or just the ones near the sink? I’m also wondering if installing more than necessary could cause any issues or added cost I should watch out for.
You don’t need GFCI protection on every kitchen outlet, but it is required for all outlets that serve countertop surfaces, not just those right by the sink. Installing GFCIs on every outlet isn’t harmful, but it can be more expensive than needed. Also, avoid connecting GFCI-protected outlets in series, as this can make troubleshooting trips harder. Focus on required areas to balance safety and cost.
If I’m renovating my kitchen and adding new outlets, how do I know when I need GFCI protection versus AFCI, or is there a situation where both are required on the same outlet?
In a kitchen renovation, all new outlets serving countertop surfaces must have GFCI protection. AFCI protection is also required for most new circuits in kitchens under current electrical codes. In many cases, you’ll need to provide both protections. There are combination devices that offer both GFCI and AFCI protection in one outlet, or you can install breakers that provide the required protection at the panel.
You mention that GFCIs are important anywhere water and electricity might meet, but are there any exceptions to this rule for garages or unfinished basements, or should every outlet in those spaces have GFCI protection as well?
For most garages and unfinished basements, current electrical codes require that all 120-volt, single-phase, 15- and 20-amp outlets have GFCI protection, with very few exceptions. There may be rare cases, such as outlets for certain dedicated appliances, that are exempt, but in general, you should plan on using GFCIs throughout these areas for safety and code compliance.
I’m planning to remodel my kitchen and bathroom and I’m a little confused about where exactly I need to use GFCI outlets versus AFCI breakers. Are there any places in these rooms where I’d actually need both types of protection on the same circuit, or could that cause tripping issues?
In kitchens and bathrooms, GFCI protection is required for all outlets near sinks and on countertops, while AFCI protection often covers the entire branch circuit, including those same areas. Modern electrical codes sometimes require both protections in these circuits. Using both—typically an AFCI breaker with GFCI outlets—does not usually cause nuisance tripping if installed correctly, but it’s important to follow the latest local code and manufacturer guidelines. A licensed electrician can help ensure everything is up to code and operating safely.
When identifying existing protection in my property, are there models of GFCI or AFCI that visually look similar but serve different functions? I want to avoid accidentally replacing one with the wrong type during routine maintenance.
Yes, GFCI and AFCI outlets can look quite similar, often featuring the same style of test and reset buttons. However, they’re labeled differently—GFCIs are marked with ‘GFCI’ or ‘Test/Reset’, while AFCIs are labeled ‘AFCI’ or ‘Arc Fault’. Before replacing any outlet, check the label on the device itself or inside the cover plate to confirm its type. This will help ensure you install the correct protection for each location.
I’m getting ready to renovate my kitchen and bathroom. Is it more cost-effective to install GFCI breakers in the panel instead of replacing every individual outlet, and will that meet current local code requirements?
Installing GFCI breakers in your panel can protect all outlets on a circuit, so it might save money and time compared to replacing each individual outlet with a GFCI version. However, some local codes require GFCI protection at the first outlet, or may have specific requirements for kitchens and bathrooms. It’s important to check with your local building department or a licensed electrician to ensure your approach meets the latest code in your area.
You mention GFCIs are especially important where water and electricity may meet—are there any lesser-known locations in a typical home where GFCI protection is now required under recent code updates?
Yes, recent code updates have expanded GFCI protection requirements to several areas beyond the usual kitchens, bathrooms, and outdoor spaces. Now, you also need GFCIs in laundry areas, unfinished basements, garages, crawl spaces, and even for receptacles serving sump pumps and dishwashers. Always check your local code, as some areas may have additional requirements.
When you mention GFCIs are required wherever water and electricity might meet, does that mean every single outlet in my kitchen and bathroom needs one, or is it just for those near the sinks? I want to avoid overdoing it but stay within code.
You don’t need a GFCI on every outlet in your kitchen or bathroom. The code generally requires GFCI protection for outlets within six feet of a sink, and for all bathroom outlets. In kitchens, any outlet serving countertop surfaces should have GFCI, but outlets for appliances like your fridge, if not on a countertop, might not need it. This keeps you compliant without unnecessary installations.
I’m planning to remodel my small business space and noticed that sometimes both GFCI and AFCI devices are required in certain rooms. Is it ever allowed by code to use a dual function breaker instead of installing separate GFCI outlets and AFCI breakers, and does that affect inspection approval?
Yes, many electrical codes do allow the use of dual function breakers—these provide both GFCI and AFCI protection in one device, and they’re often approved as long as the specific code requirements for the area are met. Just make sure the breaker is listed for both protections and installed properly; this approach is usually acceptable during inspection, but always check with your local inspector for any special rules in your jurisdiction.
When adding GFCI or AFCI outlets to an older home, is it possible to do it as a DIY project, or would I need to upgrade the whole electrical panel to be compliant with modern safety codes?
You can often add GFCI or AFCI outlets to an older home as a DIY project without needing to upgrade the entire electrical panel, as these devices are designed to work with existing wiring. However, it’s important to ensure your panel and wiring are in good condition and compatible. For AFCI, some older panels may not accept AFCI breakers, but outlet-style AFCIs are an option. If you’re unsure, consult a licensed electrician to confirm compatibility and safety.
The article mentions that installing the wrong device or missing protection can lead to insurance issues or code violations. If my house was built before the current requirements for GFCI and AFCI, am I obligated to retrofit outlets in older rooms, or are these rules only for new installations and renovations?
You are generally not required to retrofit existing outlets in older rooms solely because new GFCI or AFCI regulations exist; these codes usually apply to new construction or when you remodel or upgrade wiring in those areas. However, adding protection is often recommended for safety, and some insurance companies may have their own requirements, so it’s wise to check with them as well.
The guide mentions that GFCIs are essential anywhere water and electricity can mix. Does this mean I should be installing them in places like my laundry room and garage as well, or just in kitchens and bathrooms? Trying to figure out where the line is drawn.
You’re right to think beyond just kitchens and bathrooms. GFCIs are also recommended for laundry rooms, garages, unfinished basements, outdoors, and anywhere else electrical outlets could be exposed to moisture. Essentially, if there’s a chance water and electricity could come into contact, installing GFCIs is a good safety move.
If I’m upgrading my kitchen for safety but have a tight budget, is it more crucial to prioritize GFCI outlets near the sink or AFCI breakers at the panel?
If your budget is limited, prioritize installing GFCI outlets near the sink. Kitchens are high-moisture areas where the risk of electrical shock is greatest, and GFCIs are specifically designed to protect against this hazard. AFCI breakers are also important but focus first on GFCI protection in areas near water for immediate safety improvements.
Can you explain how to tell if an outlet already has GFCI or AFCI protection if the breaker panel isn’t clearly labeled? I want to avoid doubling up on devices unnecessarily while upgrading my home’s electrical system.
To check for GFCI protection, look for outlets with “Test” and “Reset” buttons—these are GFCI outlets. For AFCI, it’s a bit trickier since AFCI outlets look like standard ones. However, if your breaker panel has breakers labeled “AFCI” or with a test button, circuits they serve are protected. If neither is clear, you can use a GFCI or AFCI tester (available at hardware stores), which will indicate if protection is present. This helps avoid unnecessary upgrades.
Could you clarify whether it’s possible or advisable to use combination GFCI/AFCI breakers to satisfy both protection requirements in areas like kitchens or laundry rooms, or is it better to install separate devices for each?
You can use combination GFCI/AFCI breakers to meet both protection requirements in many cases, such as kitchens or laundry rooms. These breakers are designed to provide both ground fault and arc fault protection from a single device, simplifying installation and code compliance. However, always check your local electrical codes and manufacturer instructions to ensure a combination breaker is permitted and suitable for your specific wiring and appliance setup.
When adding new circuits during a renovation, is it more cost-effective to use GFCI/AFCI breakers at the panel or install individual receptacles throughout the house? Are there pros and cons for safety or troubleshooting between those two approaches?
Choosing between GFCI/AFCI breakers at the panel and individual receptacles depends on your project’s needs. Breakers at the panel can be more cost-effective for multiple outlets on one circuit and simplify future upgrades, but troubleshooting can be harder since a trip affects the whole circuit. Individual receptacles may cost more if you have many outlets, but they make pinpointing issues easier and allow you to protect only specific locations. Both methods offer reliable safety if installed correctly.
When identifying existing GFCI or AFCI protection in an older home, what are some practical ways to tell which outlets or breakers are already compliant, especially if they’re not clearly labeled? Any tips for troubleshooting miswired or hidden devices in a remodel?
To identify GFCI outlets, look for buttons labeled TEST and RESET—these are clear indicators. For AFCI, check your electrical panel for breakers labeled AFCI. If devices aren’t labeled, a GFCI tester can help determine if an outlet is protected. For hidden or miswired devices, test each outlet in the circuit; if one trips others, they may be downstream from a single GFCI. If you’re unsure or detect any wiring issues, it’s a good idea to consult a licensed electrician during a remodel.
How much does it typically cost to upgrade from standard outlets to GFCI and AFCI protection throughout a whole house, and do you need a permit or can a homeowner do this without professional help?
Upgrading to GFCI and AFCI protection throughout an entire house can cost anywhere from $1,000 to $3,000 or more, depending on the home’s size, number of circuits, and local labor rates. Most areas require a permit for this type of electrical work, and some only allow licensed electricians to perform it. DIY installation may be possible in some places, but always check local codes before proceeding.
When the article talks about updating older homes to comply with new GFCI and AFCI requirements, does that mean I have to replace all my outlets, or just add these devices in certain spots? How do I figure out exactly where I need to upgrade?
You don’t need to replace every outlet in your home. Usually, GFCI and AFCI protection is required in specific locations, like kitchens, bathrooms, laundry areas, bedrooms, and outdoor outlets. To know exactly where upgrades are needed, review your local electrical code or consult a licensed electrician. They can check your home’s wiring and recommend which circuits or outlets need GFCI or AFCI devices added or replaced.
The article says installing the wrong device or missing protection could violate local codes and insurance. How can I find out exactly what my local codes require for GFCI versus AFCI in each room before I start any rewiring project?
To find out your exact local code requirements for GFCI and AFCI protection, contact your city’s building or electrical inspection department. They can clarify which rooms need each type of protection. You can also ask a licensed local electrician, as they’re familiar with recent code changes and what inspectors enforce. Always check before starting any rewiring to ensure compliance and keep your insurance valid.
When it comes to installation, do GFCI and AFCI devices add significantly to the cost compared to standard outlets or breakers? I’m budgeting for a full kitchen remodel and wondering if there are ways to prioritize protection without overspending.
GFCI and AFCI devices do cost more than standard outlets or breakers—typically several times as much per unit. However, prioritizing high-risk areas like kitchen countertops, sinks, and circuits serving appliances will maximize protection where it matters most. If budget is tight, you can use GFCI or AFCI breakers to cover multiple outlets on a circuit rather than individual devices at each location, which can help save on overall costs.
You mentioned the risk of mixing up AFCI and GFCI protection or missing an installation entirely. If I want to upgrade my existing outlets, how do I tell if my panel or outlets already have AFCI or GFCI protection without opening everything up?
To check for GFCI protection, look for outlets with test and reset buttons—these are GFCI outlets. For AFCI, modern circuit breaker panels may have breakers labeled ‘AFCI’ or ‘Combination AFCI.’ You can also use plug-in testers designed for GFCI or AFCI detection, which give clear indicators without opening up your panel or outlets.
For someone planning a phased home upgrade on a tight budget, is it more urgent to prioritize GFCI installations in the bathroom and kitchen first, or focus on adding AFCI protection throughout the bedrooms? How should I approach prioritizing these safety updates?
If you’re prioritizing on a tight budget, it’s best to start with GFCI installations in kitchens and bathrooms. These areas have the highest risk of electrical shock due to the presence of water. Once those high-risk locations are protected, you can plan to add AFCI protection in bedrooms and living areas as your budget allows. This step-by-step approach will give you the most immediate safety benefits while spreading out costs.
If I’m upgrading an old house that doesn’t have any GFCI or AFCI outlets, is it more important to start with the bathrooms and kitchen, or should I focus on bedrooms and living spaces first? I’m trying to prioritize based on risk and code requirements.
You should prioritize installing GFCI protection in bathrooms and kitchens first, as these areas have higher risks of electrical shock due to water exposure. Electrical codes also require GFCIs in these locations. Once those areas are protected, you can focus on bedrooms and living spaces with AFCI protection to help prevent electrical fires. Addressing bathrooms and kitchens first will provide the greatest immediate safety improvement.
You mention that GFCIs trip if they detect a tiny imbalance in current flow. Are there any common troubleshooting tips if a new GFCI outlet keeps tripping unexpectedly, especially after installation in a kitchen or near water sources?
If a new GFCI outlet keeps tripping, first unplug all devices on that circuit to check if an appliance is causing the issue. Inspect the outlet wiring to ensure hot and neutral wires are correctly connected—not reversed. Moisture in the outlet or box, especially in kitchens or near water, can also cause trips. Allow the area to dry completely before resetting. If it continues, there may be a wiring fault or ground issue, so consider consulting a licensed electrician.
I’m new to this and the guide mentions step-by-step installation. If I want to start by upgrading just one room for now, is there a specific order or priority in which I should install GFCIs versus AFCIs? Does it make sense to do just the kitchen before anywhere else?
Upgrading your kitchen first is a smart choice because kitchens are high-risk areas for electrical shocks due to water and appliances. Installing GFCI outlets there is usually required by code and offers immediate safety benefits. If your home’s breaker panel supports AFCIs, those can be added for added fire protection, but for kitchens, GFCIs are generally the higher priority. Start with GFCIs, especially near sinks and countertops.
The article mentions that installing the wrong protection, or missing it altogether, could violate local codes or affect insurance. How do you handle situations in older homes where circuits serve both kitchens and living areas? Would you need both GFCI and AFCI on the same branch?
In older homes where a single circuit serves both kitchens and living areas, you may indeed need both GFCI and AFCI protection on that branch. The kitchen requires GFCI due to moisture risks, while living areas typically need AFCI for fire prevention. The best solution is to use a dual-function breaker that provides both GFCI and AFCI protection for the entire circuit. Always check local codes or consult a licensed electrician, as requirements can vary.
If I already have some outlets with test and reset buttons, how can I tell visually or with a tester whether they are GFCIs, AFCIs, or if both types of protection are present on the same circuit? Any tips for quickly identifying what’s already installed?
You can usually identify a GFCI outlet by the presence of test and reset buttons on the outlet face, often labeled as such. AFCI protection is less obvious—AFCI circuit breakers are typically found in the main electrical panel and are labeled ‘AFCI’ or ‘Combination AFCI.’ Some breakers combine both AFCI and GFCI protection and will have both labels. For a definitive check, use a GFCI tester to check the outlet, and look at your breaker panel for AFCI labeling. If in doubt, consult a licensed electrician to confirm your home’s protection.
Your explanation about why GFCIs are needed where water and electricity might mix makes sense, but I’m unclear whether a small break room sink or bathroom in a commercial space requires GFCI by code, or if that’s just for larger residential kitchens and baths?
In commercial spaces, GFCI protection is required by code for outlets located within six feet of any sink, including small break room sinks and bathrooms. This applies regardless of the room’s size. The rule isn’t limited to residential kitchens and bathrooms—commercial settings must follow similar safety standards to help prevent electrical shock hazards.
The article mentions that failing to install the correct type of protection can put you in violation of local codes. Can you explain how often building codes for GFCI and AFCI locations are updated, and whether there are regional differences homeowners should be aware of?
Building codes for GFCI and AFCI protection are typically updated every three years when the National Electrical Code (NEC) is revised. However, local jurisdictions may adopt these updates at different times, or make regional amendments based on local needs. It’s important for homeowners to check with their local building department to confirm the exact requirements and the version of the code currently in effect for their area.
If my home already has some older GFCI outlets in the kitchen and bathrooms, do I need to upgrade them to meet current codes, or do the requirements only apply when making renovations or adding new circuits?
If your existing GFCI outlets were installed according to the code in effect at that time, you typically don’t need to upgrade them unless you’re doing renovations or adding new circuits. However, upgrading old GFCIs can improve safety, as newer devices offer better protection and features. Always check with your local building department for the exact requirements in your area.
You mentioned both GFCI and AFCI protection but I’m a little confused about overlapping areas. For rooms like laundry rooms or finished basements where both water and potential arc faults might exist, am I supposed to use both types of protection, or is there a specific device that covers both?
In areas like laundry rooms or finished basements where both GFCI and AFCI protection may be required, you can use a dual-function breaker or receptacle that combines both protections in one device. These are called dual-function AFCI/GFCI breakers or outlets. If your local code requires both types of protection, these devices will meet that requirement and simplify installation.
Could you clarify how to tell if an existing outlet already has AFCI or GFCI protection? I know the article touches on identification, but is there a quick way for DIYers to verify—especially behind furniture or in finished basements?
To check if an outlet has GFCI protection, look for ‘Test’ and ‘Reset’ buttons on the outlet face; that’s a clear sign. For AFCI, outlets usually look normal, but protection often comes from the breaker panel—a breaker labeled ‘AFCI’ means that circuit is protected. If outlets are hidden or not easy to inspect, consider using a plug-in GFCI/AFCI tester, which can quickly indicate if protection is present without moving heavy furniture.
You mention step-by-step installation advice and troubleshooting, but what are some common mistakes homeowners make when installing a new GFCI outlet in a bathroom or kitchen? Are there specific warning signs to look for if something isn’t wired correctly?
Some frequent mistakes during GFCI installation include reversing the line and load wires, not connecting the ground wire, or overcrowding the electrical box. If something is wired incorrectly, signs can include the outlet not resetting, the test button failing to trip the outlet, or nearby outlets losing power. Always double-check wiring and use the outlet’s instructions for guidance.
When troubleshooting nuisance tripping with a newly installed GFCI outlet, is it more often an issue with the wiring, the device itself, or possible shared neutrals? The article touched on practical troubleshooting, so I’m curious what you see most in real-world installations.
In real-world installations, nuisance tripping with new GFCI outlets is often caused by shared neutrals or wiring issues, rather than a faulty device. Shared neutrals can create ground fault conditions even when everything appears wired correctly. Double-check the wiring for correct line and load connections, and confirm there are no shared neutral paths between circuits. Device defects are less common but still possible, so swap in a different GFCI if problems persist after checking the wiring.
Does installing GFCI or AFCI outlets add a lot to the overall renovation budget, especially in older homes? I’m trying to figure out if retrofitting my bedrooms and bathrooms for new code compliance will be a big expense compared to just adding standard outlets.
Retrofitting with GFCI or AFCI outlets usually costs more than standard outlets because the devices themselves are pricier and may require extra wiring work, especially in older homes. However, the increase is often a few dozen dollars per outlet, not a huge percentage of a full renovation budget. If your electrical panel needs upgrades for AFCI breakers, that could add more. For most projects, the added safety is worth the moderate extra cost.
